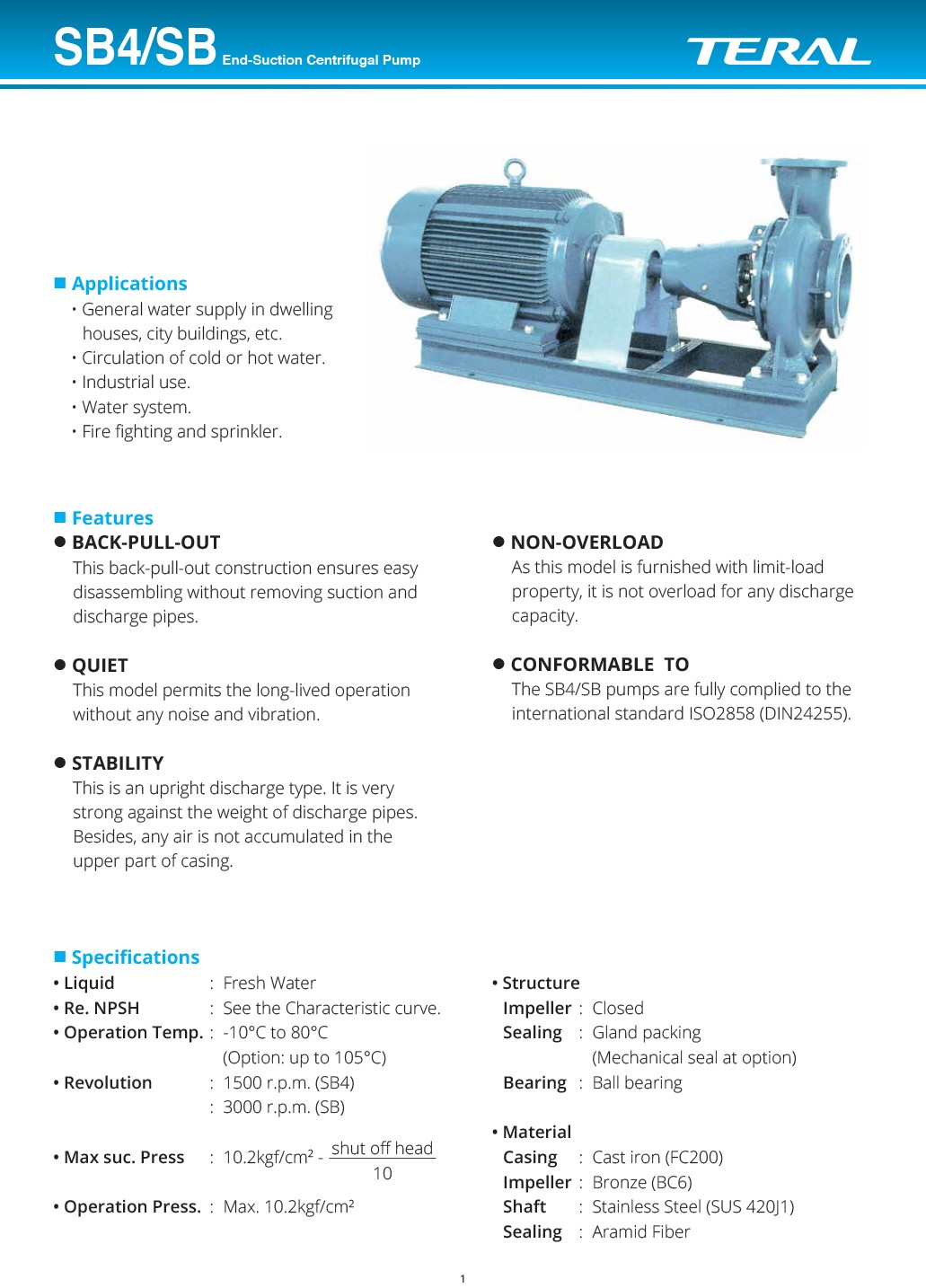

Applications

• General water supply in dwelling

houses, city buildings, etc.

• Circulation of cold or hot water.

• Industrial use.

• Water system.

• Fire fighting and sprinkler

Specifications

• Liquid : Fresh Water

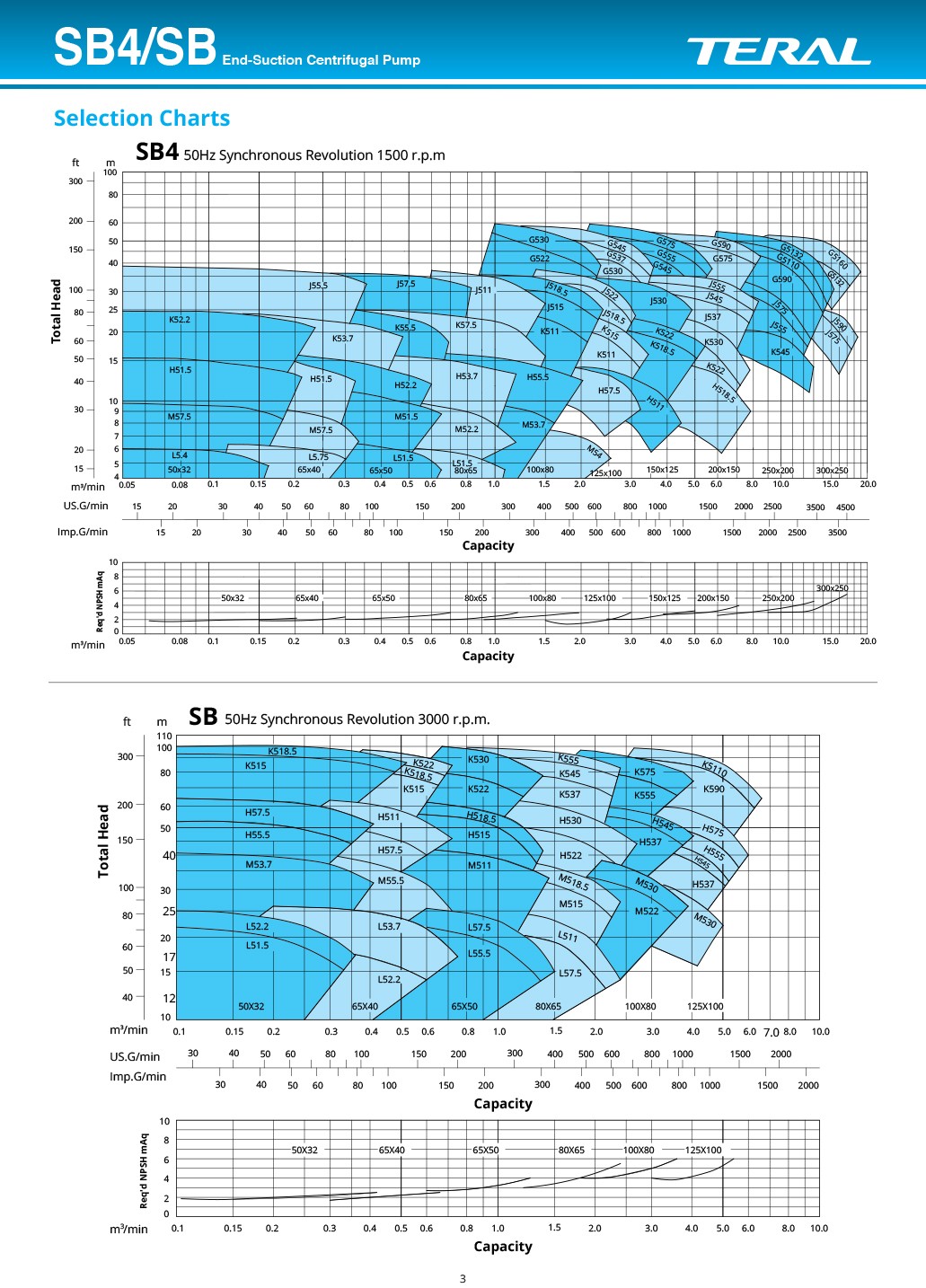

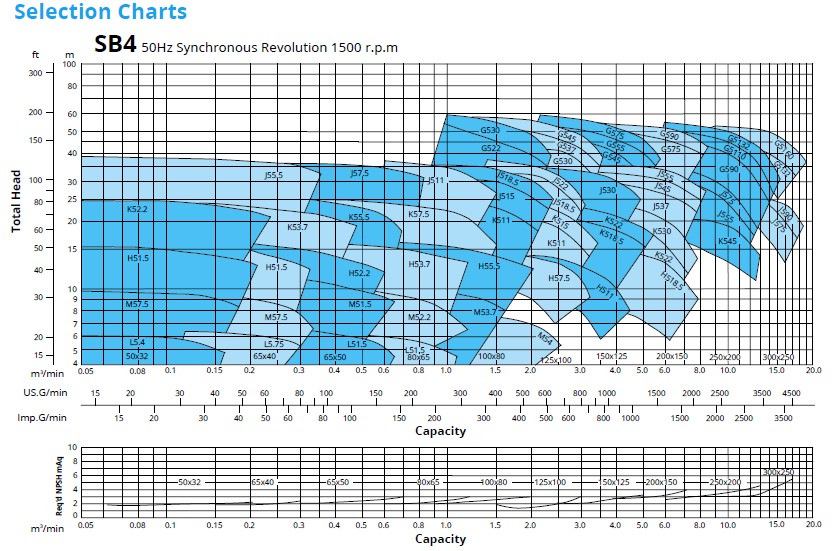

• Re. NPSH : See the Characteristic curve.

• Operation Temp. : -10°C to 80°C

(Option: up to 105°C)

• Revolution : 1500 r.p.m. (SB4)

: 3000 r.p.m. (SB)

• Max suc. Press : 10.2kgf/cm2 -

• Operation Press. : Max. 10.2kgf/cm2

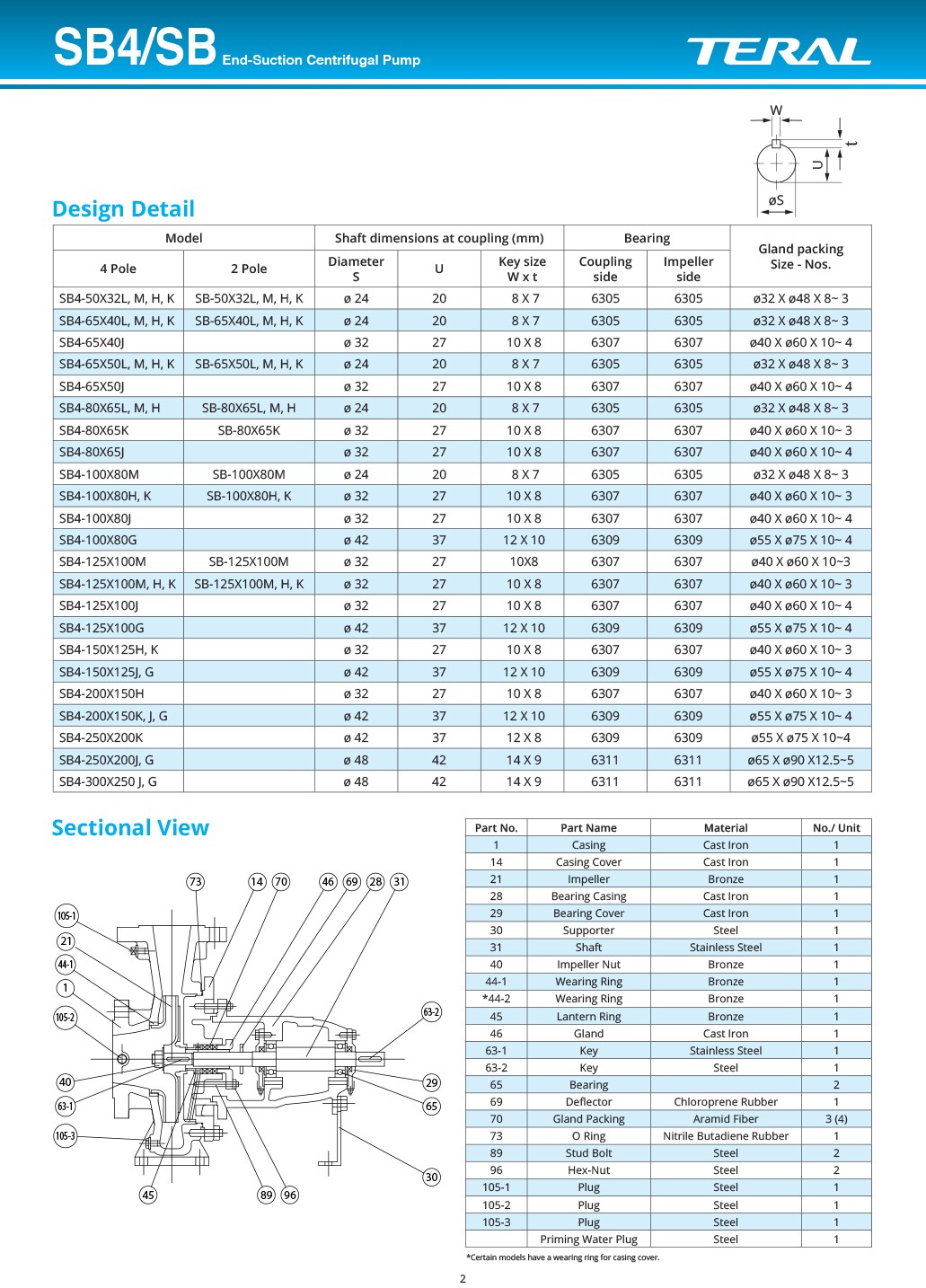

Structure

Impeller : Closed

Sealing : Gland packing

(Mechanical seal at option)

Bearing : Ball bearing

• Material

Casing : Cast iron (FC200)

Impeller : Bronze (BC6)

Shaft : Stainless Steel (SUS 420J1)

Sealing : Aramid Fiber
